TANDEMBOX intivo
Easy assembly and adjustment
TANDEMBOX intivo also impresses with its ease of assembly. BOXCAPs or BOXCOVERs with design elements can be mounted without tools in no time at all. Perfect gap alignment is child’s play. Height, side and tilt can be quickly adjusted via the aperture on the drawer side under the cover cap. And the front can also be removed via the aperture in a flash.
Assembly, adjustment and removal

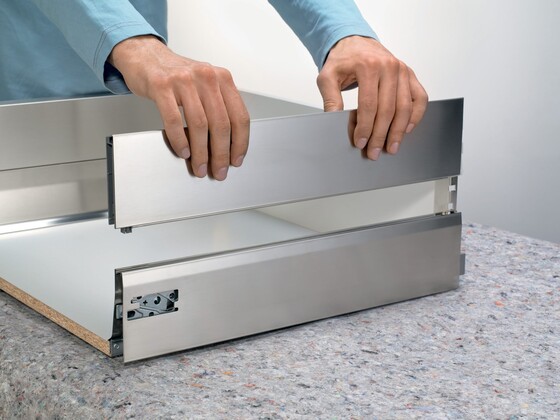

BOXCAPs are simply clipped onto the drawer side. Design elements are also mounted without tools. Just slide a BOXCOVER over the top of the design element and that’s it.

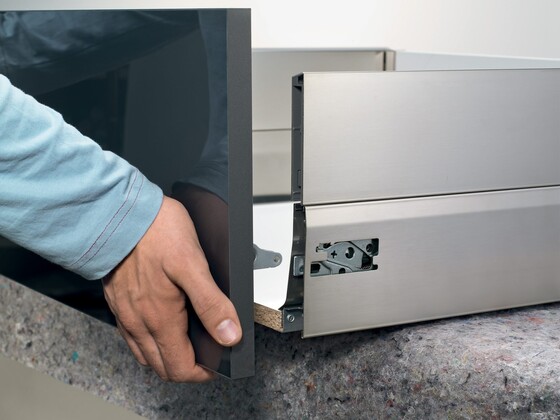

When you clip the front into the front fixing bracket it will click into place. Hey presto! The drawer or pull-out is complete.

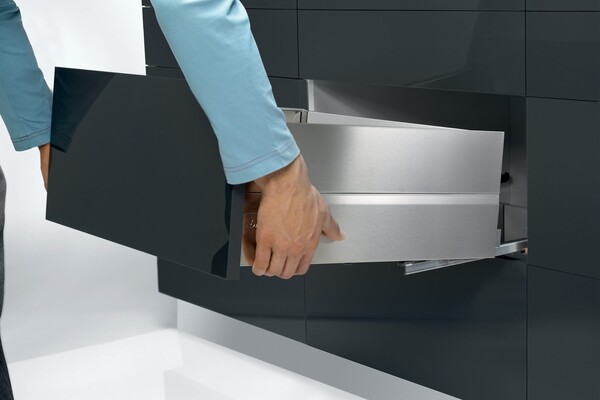

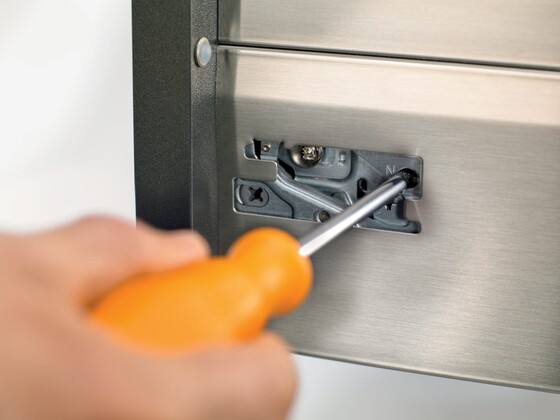

Height, side and tilt adjustment have been integrated into the drawer side so they are easily accessible from the outside. You can also detach the front via the aperture in the drawer side.
Assembly instructions
Assembly videos
TANDEMBOX intivo – ORGA-LINE assembly
The ORGA-LINE inner dividing system for TANDEMBOX intivo is easy to install. This video shows you how.
TANDEMBOX intivo design element with BOXCOVER – for delicate fronts
Instead of sliding on the BOXCOVER (variant 1), it can also be clipped on for delicate fronts. (Variant 2)
TANDEMBOX intivo – BOXCAP assembly
This video demonstrates the simple and tool-free assembly process for BOXCAP when using TANDEMBOX intivo. (Variant 1)
TANDEMBOX intivo height adjustment
You get a perfect gap design with just a few turns of the hand. The height, side and tilt adjustment can be easily performed in the drawer side cutting under the cover cap. This video shows the steps required for height adjustment.
TANDEMBOX intivo short film
This product snippet shows the function, different drawer side heights, colours, design variants and cover cap variants for the TANDEMBOX intivo.
TANDEMBOX intivo – BOXCAP assembly for delicate fronts
Instead of sliding on the BOXCAP (variant 1), it can also be clipped on before front assembly. (Variant 2)
TANDEMBOX intivo side adjustment
You get a perfect gap design with just a few turns of the hand. The height, side and tilt adjustment can be easily performed in the drawer side cutting under the cover cap. This video shows the steps required for side adjustment.
TANDEMBOX intivo – removing/replacing the design element
This video demonstrates the individual steps required for replacing the design element.
TANDEMBOX intivo BOXCOVER with design element
This video demonstrates the simple and tool-free assembly process for the TANDEMBOX intivo design element, which is connected to the drawer side via BOXCOVER. (Variant 1)
TANDEMBOX intivo tilt adjustment
You get a perfect gap design with just a few turns of the hand. The height, side and tilt adjustment can be easily performed in the drawer side cutting under the cover cap. This video shows the steps required for tilt adjustment.
TANDEMBOX intivo inner pull-out with cross gallery
This video demonstrates the simple and easy assembly steps required for the TANDEMBOX intivo inner pull-out with the cross gallery.
TANDEMBOX intivo inner pull-out with design element
This video demonstrates the simple and easily assembly steps required for a TANDEMBOX intivo inner pull-out with a design element.
BOXFIX plus - box assembly using nail technology
This video provides an example of the individual steps required to assemble a box system using BOXFIX plus, with the box system nailed together.
Assembly devices
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
