AVENTOS HK-S

Virtually tool-free assembly

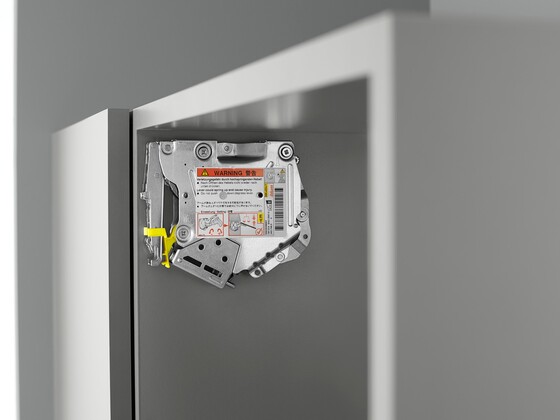

AVENTOS HK-S components are easy to assemble. Once the lift mechanism has been precisely adjusted to the weight and size of the front, the small stay lift will open, close and hold with reliable ease.

Easy assembly and adjustment

No protruding parts

Lever arms are closed so there are no protruding parts. This facilitates transportation and delivery.

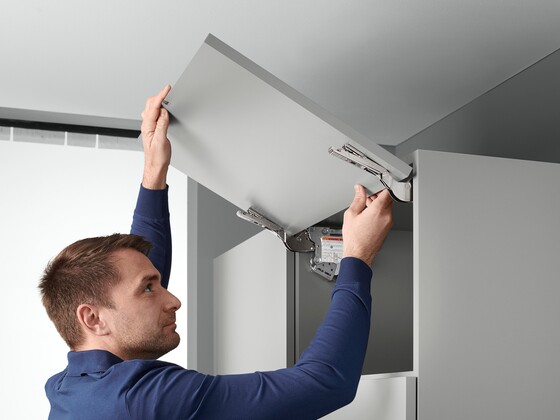

CLIP mechanism

The tried and tested CLIP mechanism is tool-free, quick and easy.

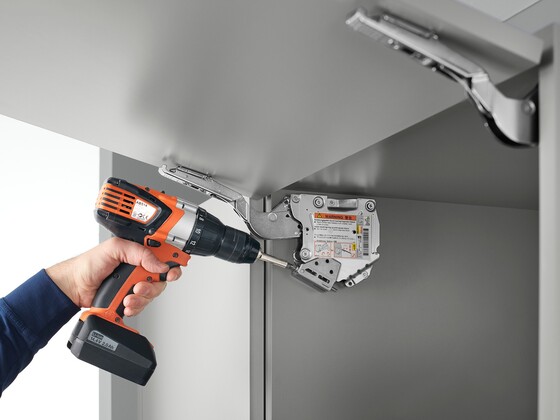

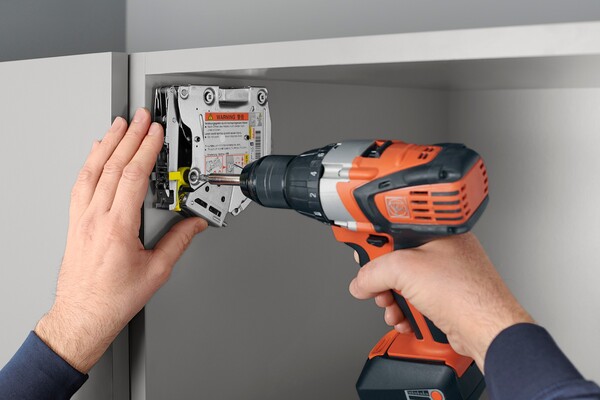

Infinitely variable power setting

Use a cordless screwdriver to precisely adjust the lift mechanism to the weight of the front. And the front will hold in any position.

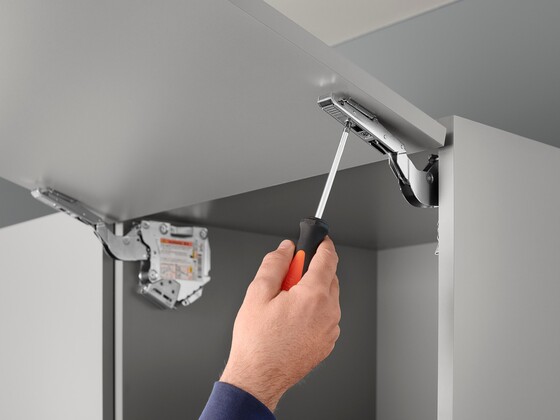

3-dimensional adjustment

Easy 3-dimensional adjustment produces perfect gap alignment.

Assembly instructions

AVENTOS HK-S front fixing bracket for narrow alu frames

PDF | 479 KB | 06-15-2023

AVENTOS HK-S opening angle stop

PDF | 741 KB | 07-13-2023

AVENTOS HK-S special applications

PDF | 1 MB | 07-13-2023

AVENTOS HK-S standard applications

PDF | 989 KB | 07-13-2023

AVENTOS HK-S transportation lock and removal

PDF | 165 KB | 06-15-2023

SERVO-DRIVE for AVENTOS

PDF | 7 MB | 01-10-2024

Assembly videos

AVENTOS HK-S

This video shows the easy assembly and adjustment of the AVENTOS HK-S lift system for small stay lifts.

AVENTOS HK-S adjustment options

The adjustment options for height, side and depth of the front are shown in this sequence.

TIP-ON for AVENTOS HK-S short film

This product snippet shows the function of TIP-ON for AVENTOS using the AVENTOS HK-S.

AVENTOS HK-S short film

This product snippet shows the motion, the variable stop and the different cover cap colours of AVENTOS HK-S.

Assembly devices

Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
