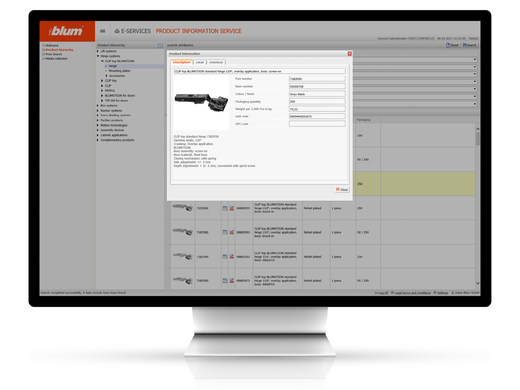

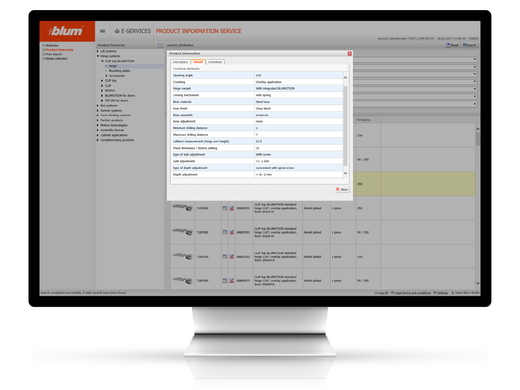

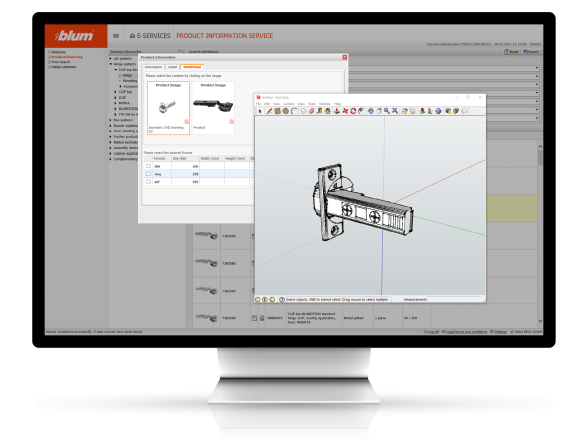

Click on "Free Search" in the structure tree to the left of the screen. Enter the part number, item number, or description of the product in the "Search Term" field and click "Search." Find the correct product in the search results and click on the image thumbnail. In the pop-up window, click "Download" and scroll down until you see "Isometric CAD drawing 3D" or "CAD." Click on it. From here, select the desired file format(s) and click "Download." Select where you would like to save the file(s).
If there is not a product image labeled "Isometric CAD drawing 3D" or "CAD," this means there is no CAD data available in the Product Database. In this case, you can send an email to e-services.us@blum.com to request the CAD data.
