TIP-ON BLUMOTION for MERIVOBOX

Easy manufacturing and assembly

Thanks to identical fixing positions, manufacturing processes are always the same. This means that motion technologies can be easily retrofitted as needed. Interior roll-outs and drawers equipped with TIP-ON BLUMOTION for MERIVOBOX are made like usual – no modifications needed. What's more, Blum's handy templates make manufacturing and assembly easy.

Assembly and installation

Standard cabinets and drawers

TIP-ON BLUMOTION can be used with standard cabinets and fronts. No modifications are needed.

Easy assembly

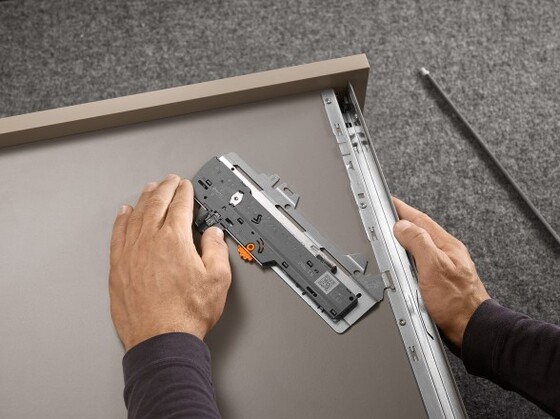

Like most components, the TIP-ON BLUMOTION unit is assembled without tools.

Precise front gap adjustment

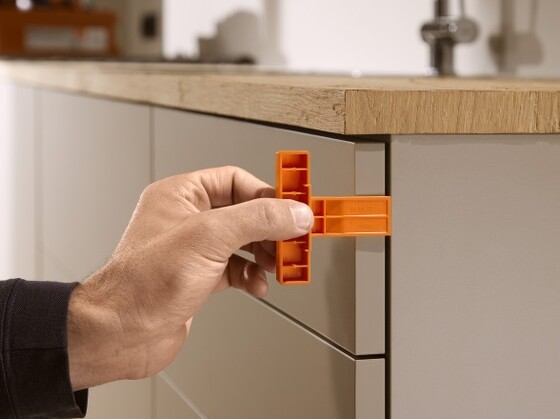

The front gap can easily be adjusted to 2.5 mm using the setting template (even if the front is already in position).

Synchronization

The synchronization feature expands the trigger range and improves the TIP-ON BLUMOTION function. Two synchronization options are available for different internal cabinet widths. Both can be mounted without tools.

Internal cabinet width starting from ≥ 294 mm

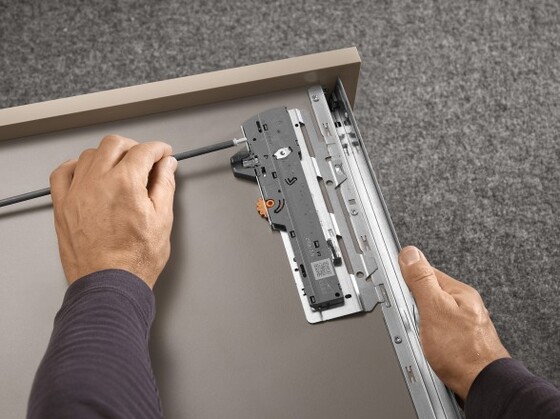

TIP-ON BLUMOTION units for internal cabinet widths of 294 mm or more are synchronized with synchronization adapters and a synchronization linkage.

Tool-free assembly

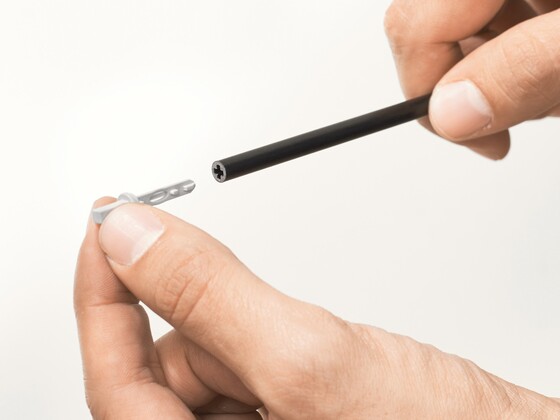

The symmetrical synchronization linkage is clipped onto the TIP-ON BLUMOTION unit without tools.

Internal cabinet widths of 238 to 294 mm

One-piece synchronization is used for smaller internal cabinet widths instead of a synchronization linkage and adapters.

Assembly devices

Blum offers a wide range of drilling and insertion machines, assembly devices and templates to make assembly of Blum products simple and precise.

Go to Assembly Devices
