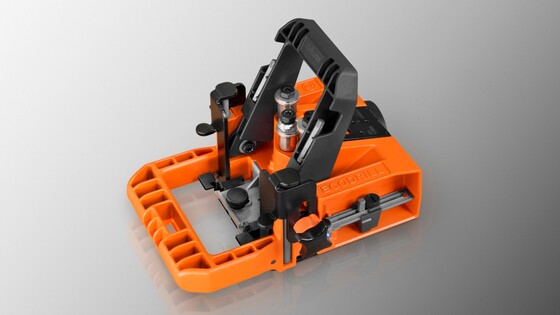

The new ECODRILL

Optimized and better than ever!

New design and even more efficient handling

We have optimized our tried-and-true ECODRILL assembly device to meet your needs. From workshop to construction site, the new user-friendly ECODRILL will make your work considerably easier thanks to numerous handy features as well as ergonomic and compact design.

The new ECODRILL can be used to assemble the following Blum products:

CLIP top BLUMOTION hinge
CLIP top hinge
AVENTOS HF lift system hinge
AVENTOS HK-XS lift system hinge

All features at a glance

One-handed clamping

Now you only need to engage one lever to clamp ECODRILL in place. You can then start drilling right away.

Easy adjustment to material thickness

Spring-assisted self-clamping lets you conveniently adjust the material thickness within a range of 15–40 mm.

Extraction

Another new feature is the integrated extraction socket for extraction hoses with diameters between 32–42 mm. Thanks to the additional, larger chip space, you'll be exposed to significantly less dust during drilling work.

Easy setting of drilling distance

The new ECODRILL offers easy access from above using one hand. Now you can set two reference dimensions – the edge distance as well as the dimension to the center of the hole. A standard drilling distance range of 2-8 mm is incorporated. For bi-fold hinges, the required 12.5 mm hole center is also possible.

Integrated mounting plate template for mounting plates

ECODRILL's integrated mounting plate template lets you mark the mounting positions of the hinge mounting plates and adapter plates for TIP-ON and BLUMOTION, so you can work in a consistent way when assembling hinges.

Side stops

The side stops can be extended and retracted and have a measuring scale from 80–130 mm. This makes it easy to adjust standard distances without having to re-measure every time and work on a marking line. However, there is still the option of working with a marking line as before (for example, in cases where you have to assemble three hinges).

"Whether you're in your workshop or out on site, the ergonomic design of the new ECODRILL and its practical features make this a must-have tool."

Dietmar Vonach - ECODRILL product developer
