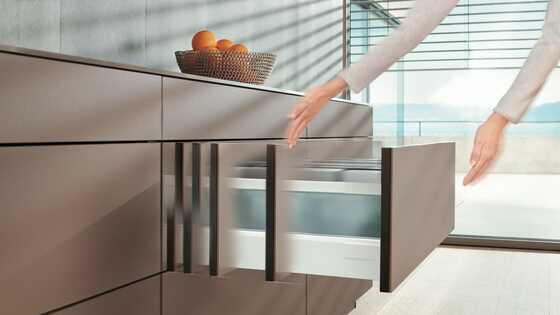

TIP-ON BLUMOTION for TANDEMBOX
Well-thought-out product details
A special TANDEMBOX cabinet profile has been designed to support the mechanical opening support system. Various nominal lengths and weight ranges can be implemented using the different TIP-ON BLUMOTION units available. All other components are universal.
![](/images/560/315/3945193/corporate/media/bilder/produkte/bewegungstechnologien/tob0064_aa_fot_fo_bau_-sall_-apr6i_-v1_16:9.jpg)
![](/images/560/315/3945195/corporate/media/bilder/produkte/bewegungstechnologien/TOB-TBX-Korpusschiene-578_5001m_QU_16:9.jpg)
Cabinet profile
Load bearing capacity | Nominal length |
---|---|
30
|
270 - 600
|
65
|
450 - 650
|
![](/images/560/420/3945197/corporate/media/bilder/produkte/bewegungstechnologien/Einheit-und-Mitnehmer-TOB-TBX_3:2.jpg)
Unit and latch set
Nominal length | Weight range | Unit | Colour coding system |
---|---|---|---|
270-300 mm
|
≤ 10 kg
10-20 kg |
S0
S1 |
White
Light grey |
350-650 mm
|
≤ 20 kg
15-40 kg 35-65 kg |
L1
L3 L5 |
Light grey
Dust grey Black |
Synchronisation
We recommend using the synchronisation feature to enlarge the trigger range and achieve top quality performance. A synchronisation linkage is used to this end.
![](/images/560/420/3945211/corporate/media/bilder/produkte/bewegungstechnologien/tob_tbx_ausloesebereich_4:3.jpg)
Trigger range with and without synchronisation feature
![](/images/560/420/3947092/corporate/media/bilder/produkte/bewegungstechnologien/tob0089_dt_frd_fo_bau_-sall_-apr6i_-v1_4:3.jpg)
Synchronisation linkage with synchronisation adapters for internal cabinet widths of ≥ 287 mm
![](/images/560/420/3947104/corporate/media/bilder/produkte/bewegungstechnologien/tob0095_dt_frd_fo_bau_-sall_-apr6i_-v1_4:3.jpg)
