TIP-ON BLUMOTION for TANDEMBOX
Easy manufacturing and assembly
Pull-outs and drawers that are to be equipped with TIP-ON BLUMOTION for TANDEMBOX are made as normal. No additional work is required. Blum’s practical templates make manufacturing and assembly easy.
Manufacturing, assembly and adjustment
Standard cabinets and drawers
TIP-ON BLUMOTION can be implemented with standard cabinets and fronts. No modifications are needed.
Easy assembly
Like most components, the TIP-ON BLUMOTION unit is assembled without tools.
Precise front gap alignment

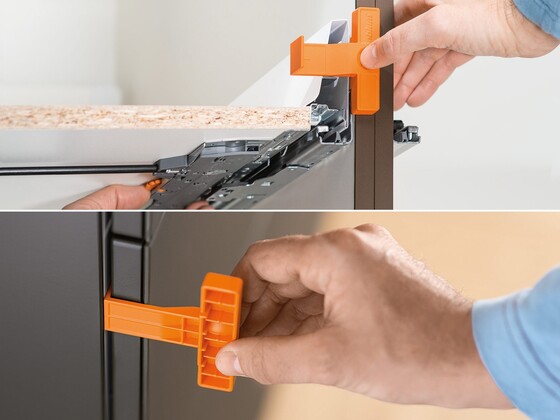

The front gap can easily be adjusted to 2.5 mm using the gap template (even if the front is already in position).
Synchronisation
The synchronisation feature enlarges the trigger range and improves the TIP-ON BLUMOTION function. Two synchronisation options are available for different internal cabinet widths. Both can be mounted without tools.
Internal cabinet widths starting from 287 mm
TIP-ON BLUMOTION units for internal cabinet widths of 287 mm or more are synchronised with synchronisation adapters and a synchronisation linkage.
Tool-free assembly

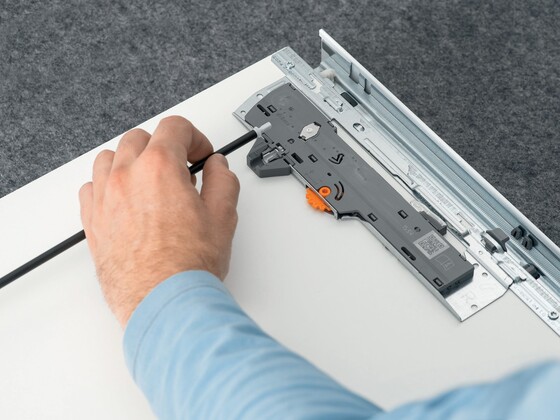

The symmetrical synchronisation linkage is clipped onto the TIP-ON BLUMOTION unit without tools.
Internal cabinet widths of 238 to 286 mm
One-piece synchronisation is used instead of a synchronisation linkage and adapters for smaller internal cabinet widths.
Accessories
To achieve top quality motion, we recommend using the following accessories for TIP-ON BLUMOTION for TANDEMBOX for cabinet widths of ≥ 750 mm.

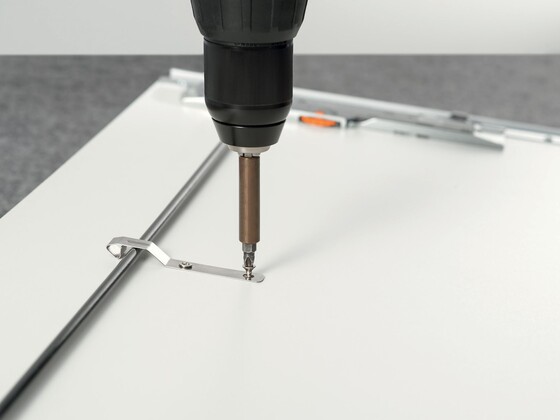

Support for synchronisation linkage
For pull-outs over a cabinet base or cross member. Prevents the synchronisation linkage from sagging.

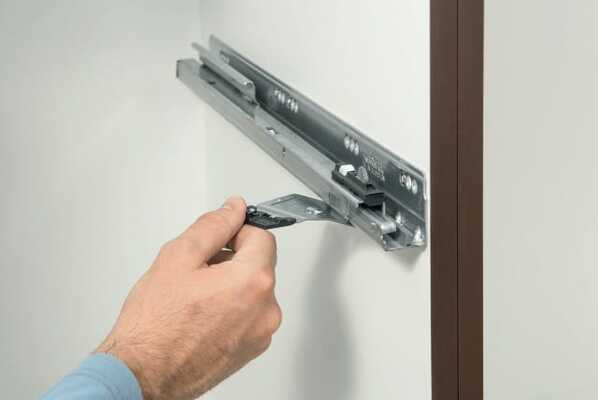

Base support bracket
For pull-outs over a cabinet base or cross member. To support the pull-out base.

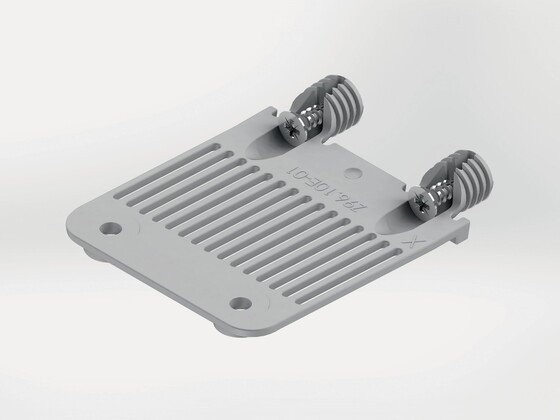

Front stabiliser
To stabilise high and wide fronts.
Assembly instructions
Assembly videos
TIP-ON BLUMOTION for TANDEMBOX
This video provides information about the assembly of the individual TIP-ON BLUMOTION for TANDEMBOX product components. It also covers depth adjustment, synchronisation, support for the synchronisation linkage and the base support bracket.
4 for more – Cabinet maker interview with Daniel Brutscher and Rudi Ohlinger from Germany (DE)
In this video, Daniel Brutscher and Rudi Ohlinger from Wangen (Germany) explain why motion technologies play a particularly significant role when it comes to implementing many design options. The selection of furniture fittings is vitally important to them both as everything flows from one source.
4 for more – Cabinet maker interview with Raphael König from Germany (DE)
In this video, master cabinet maker Raphael König explains how he skilfully combines the various Blum motion technologies depending on the application and installation situation.
4 for more – Architect interview with Barbara Erath-Hutle from Austria (AT)
In this video, interior designer Barbara Erath-Hutle explains how the 4 Blum motion technologies can be used to create unique kitchens.
4 for more – Cabinet maker interview with Daniel Flatz from Austria (AT)
In this video, Daniel Flatz from Flatz Ferdinand Tischlerei GmbH in Hörbranz (AT) explains how he provides a full overview of motion technologies for his customers in his showroom.
TIP-ON BLUMOTION for TANDEMBOX antaro short film
This short film demonstrates the function of TIP-ON BLUMOTION for TANDEMBOX antaro.
4 for more – Interview with Joanna Śmieszek and Bartek Gomularz from Poland (PL)
In this video Joanna Śmieszek and Bartek Gomularz from studio goba in Poland explain how to combine aesthetics and practicality in furniture.
4 for more - Cabinet maker interview with Amélie Chambon from Clermont-Ferrand, France
Amélie Chambon, Co-Managing Director of MODOM GmbH in Clermont-Ferrand, France. Amélie manufactures exclusive made-to-measure furniture with great attention to detail.
4 for more – Cabinet maker interview with Bartek Sałek from Poland (PL)
In this video Bartek Sałek from DIVANI kuchnie i wnętrza in Warsaw, Poland, explains how he manufactures a luxurious kitchen suitable for every member of the family.
4 for more - Cabinet maker interview with Jean-François Monier from Saint-Just-Saint-Rambert, France
Jean-François Monier from Cuisines Monier GmbH in Saint-Just-Saint-Rambert, France talks in this video about how he turns each of his kitchens into a unique creation.
Assembly devices
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
