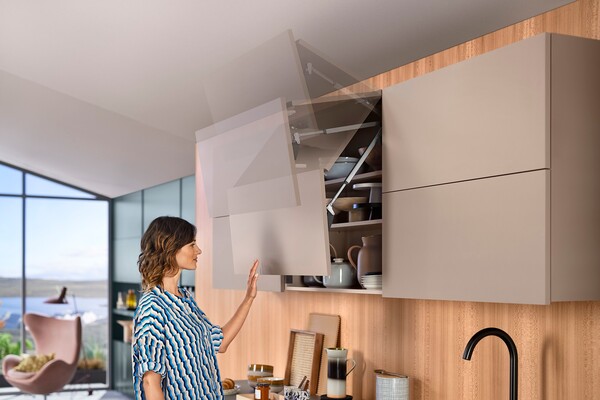

SERVO-DRIVE for AVENTOS
The unbeatable lightness of opening (and closing)
Thanks to SERVO-DRIVE for AVENTOS, wall cabinets glide open at a light touch. Even large and heavy fronts open with gravity-defying ease. And they close again just as conveniently at the press of a switch (within easy reach on the side of the cabinet). They close softly and effortlessly with soft-close BLUMOTION.
Product advantages
![](/images/560/420/3966485/corporate/media/bilder/produkte/klappensysteme/blum_kla0617_aa_fot_fo_bau_-sall_-al_-v1_4:3.jpg)
Wall cabinets open up and out of the user's way, providing them with easy access to cabinet interiors.
![](/images/560/420/3966475/corporate/media/bilder/produkte/klappensysteme/blum_kla0623_aa_fot_fo_bau_-sall_-al_-v1_4:3.jpg)
The lift system can be opened or closed by hand at any time although an electrical motion support system is in place. This will not damage SERVO-DRIVE for AVENTOS in any way.
![](/images/560/420/3966487/corporate/media/bilder/produkte/klappensysteme/blum_kla0622_aa_fot_fo_bau_-sall_-al_-v1_4:3.jpg)
SERVO-DRIVE for AVENTOS is completely safe. The opening and closing action are automatically stopped as soon as the front touches a part of the body or an object.
![](/images/560/420/3996017/corporate/media/bilder/produkte/bewegungstechnologien/me11711347_4:3.jpg)
SERVO-DRIVE for AVENTOS can also be easily deactivated - preferably via a switched outlet. This is an advantage when, for example, cleaning fronts.
SERVO-DRIVE components
After assembling the AVENTOS lift system, simply attach the individual SERVO-DRIVE for AVENTOS components to the lift mechanism and cabinet.
![](/images/560/420/3966479/corporate/media/bilder/produkte/klappensysteme/aventos-top/me41599952_bt_p_1_pb_bau_-sall_-aof_-v1_4:3.png)
This switch is pressed into the pie cut drilling on both cabinet sides. The SERVO-DRIVE switch communicates wirelessly with the drive unit.
![](/images/560/420/3990516/corporate/media/bilder/produkte/bewegungstechnologien/04850536_sd_power-supply-unit_4:3.png)

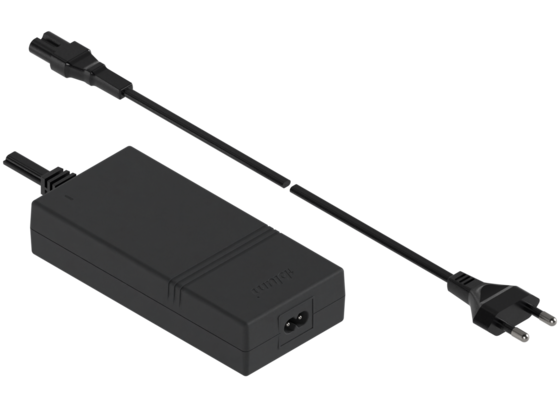

The SERVO-DRIVE power supply unit is supplied with a country-specific flex so it can be used all over the world. It converts the country-specific mains voltage to 24 V direct current. You must use a flex with a regular plug for the respective country depending on the installation location. The power supply unit housing ensures sufficient air circulation.
![](/images/560/420/3995965/corporate/media/bilder/produkte/bewegungstechnologien/distanzpuffer_sd_4:3.jpg)
Blum distance bumpers provide the required trigger path of 2 mm.
![](/images/560/420/3995953/corporate/media/bilder/produkte/bewegungstechnologien/box1406_mo_fot_fo_bau_-sall_-apr6i_-v1_4:3.jpg)
Cabling is completed in just a few steps. Thanks to piercing technology, cabling is very flexible. It can be easily adapted to individual space requirements.
![](/images/560/420/3966493/corporate/media/bilder/produkte/klappensysteme/aventos-top/antriebseinheit_avt-top_4:3.png)

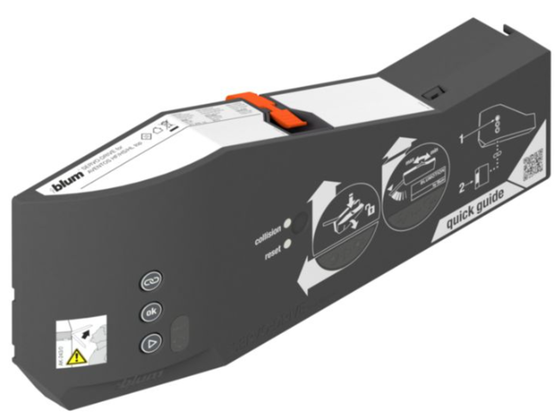

The drive unit is clipped on the respective lift mechanism without tools. Colour signals guide you through the start-up and check that the lift mechanism and BLUMOTION settings are correct at the same time.
![](/images/560/420/3995955/corporate/media/bilder/produkte/bewegungstechnologien/antriebseinheit_hktop_blum-251712_4:3.jpg)
The drive unit is attached to the lift mechanism without tools. Colour signals guide you through the start-up step-by-step.
![](/images/560/420/3995961/corporate/media/bilder/produkte/bewegungstechnologien/k_21xa001_p_2_pb_bau_-sall_-aqu_-v1_4:3.jpg)

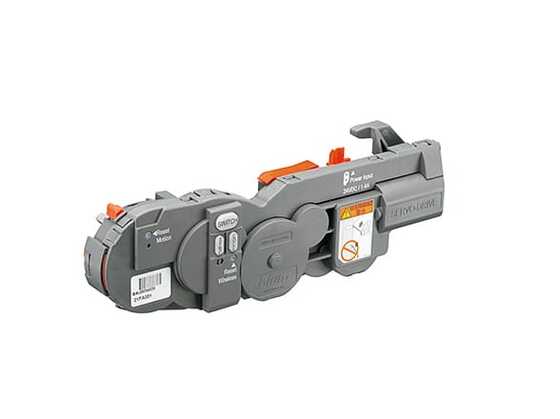

The same drive unit can be used for AVENTOS HF, HS and HL. It is simply clipped onto the lift mechanism without tools.
Cover caps for SERVO-DRIVE
![](/images/560/420/3966491/corporate/media/bilder/produkte/bewegungstechnologien/ppr_product_all_src_1_blum-39584890_4:3.png)

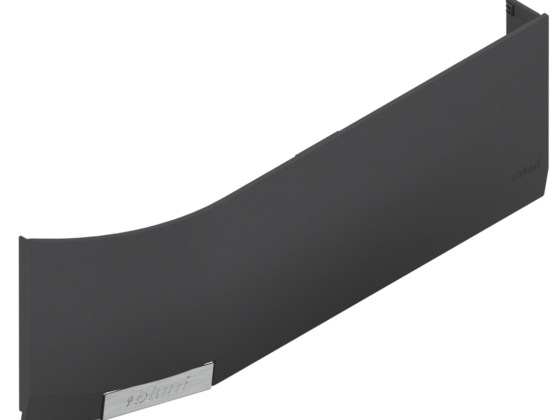

The same cover caps for AVENTOS HF top, HS top and HL top.
![](/images/560/420/3966477/corporate/media/bilder/produkte/bewegungstechnologien/ppr_product_all_src_1_blum-20121866_4:3.png)

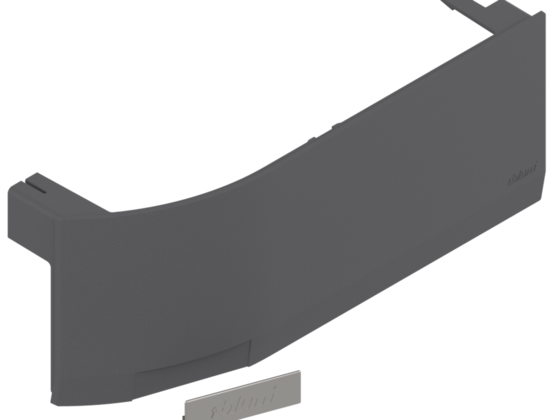

Due to the compact lift mechanism, a smaller cover cap is used for the AVENTOS HK top.
![](/images/560/420/3966497/corporate/media/bilder/produkte/bewegungstechnologien/ppr_product_all_src_1_blum-20056919_4:3.png)

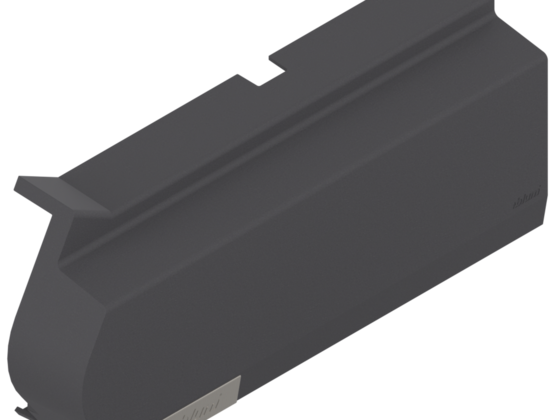

The same cover caps for AVENTOS HF, HS and HL.
