AVENTOS HS
Virtually tool-free assembly
AVENTOS HS component parts are easily assembled with CLIP technology. And adjustments are quick and simple. Once the lift mechanism has been precisely adjusted to the weight and size of the front, AVENTOS HS will open, close and hold with reliable ease. Protruding parts can be removed to facilitate transportation.
Easy assembly and adjustment
No protruding parts
Protruding parts can be removed to facilitate transportation.

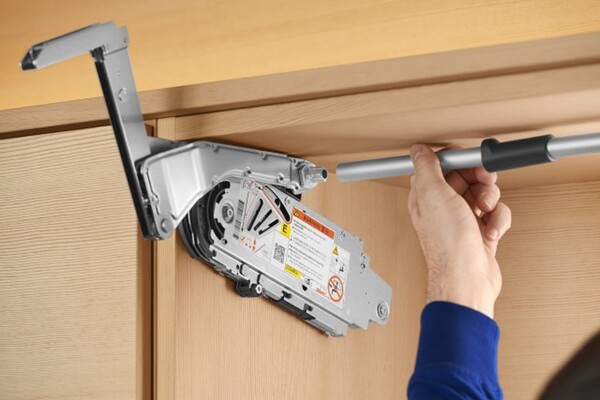

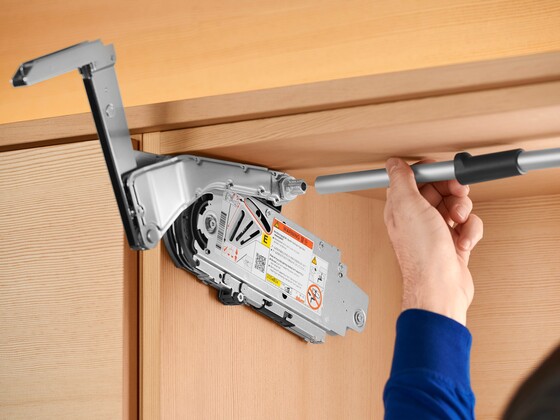

Tool-free cross stabiliser
The tool-free cross stabiliser for AVENTOS HS greatly facilitates assembly.

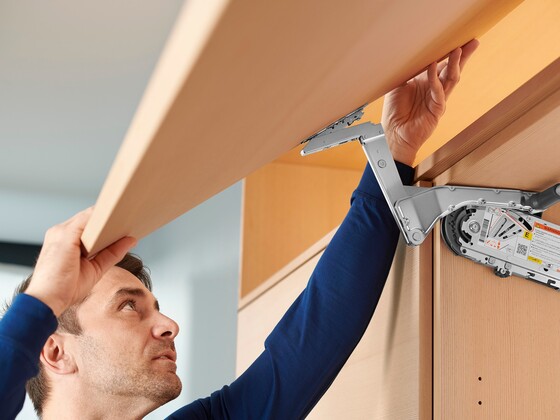

CLIP mechanism
The tried and tested CLIP mechanism is tool-free, quick and easy.

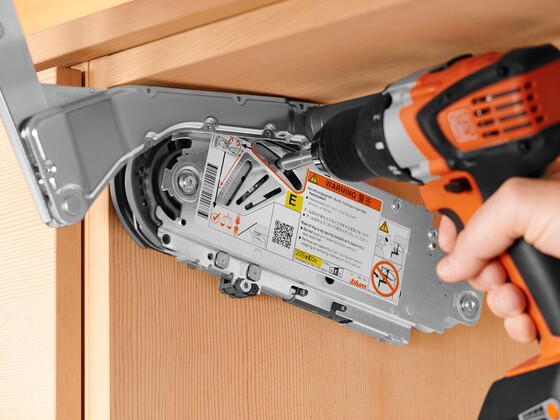

Infinitely variable power setting
Use a cordless screwdriver to precisely adjust the lift mechanism to the weight of the front. And the front will hold in any position.

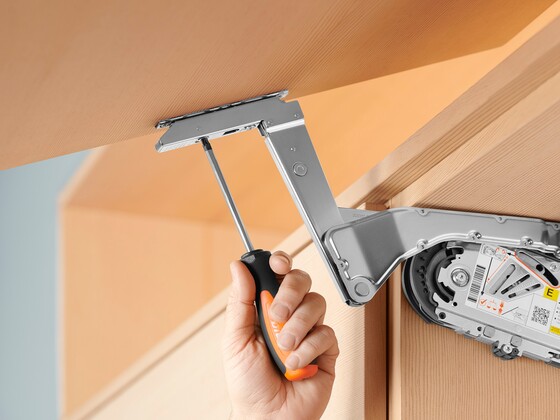

3-dimensional adjustment
Easy 3-dimensional adjustment produces perfect gap alignment.
Assembly instructions
Assembly video
AVENTOS HS
This video shows the easy assembly of the AVENTOS HS lift system.
EXPANDO T for thin fronts
This assembly video shows the assembly of thin fronts with EXPANDO T. The fixing method for CLIP top BLUMOTION 155°, AVENTOS HK top and LEGRABOX is shown.
AVENTOS HS adjustment options
The adjustment options for height, side and depth of the front are shown in this sequence.
AVENTOS HS short film
This product snippet shows the motion, the variable stop and the different cover cap colours of AVENTOS HS.
AVENTOS image video
Background information on the development of AVENTOS
Presentation video for AVENTOS HF, HS, HL and HK top
Presentation of the AVENTOS lift systems HF, HS, HL and HK top
Assembly devices
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
