CLIP top BLUMOTION
Easy assembly
CLIP top BLUMOTION excels in terms of user-friendliness. This has many advantages for assembly and adjustment.
Assembly, adjustment and removal

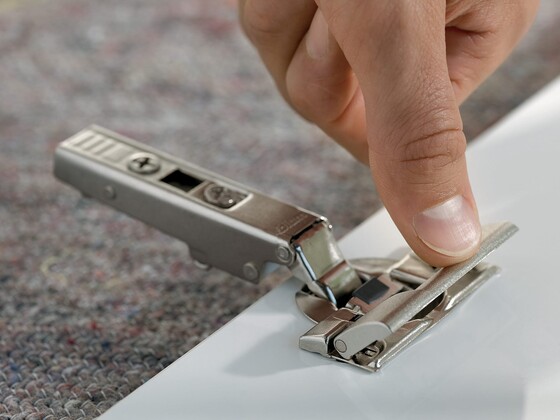

Tool-free hinge fixing
Hinge bosses can be seamlessly fixed to cabinet fronts with the tool-free INSERTA mechanism.
Tool-free front assembly
Blum’s tried and tested CLIP mechanism makes door to cabinet assembly tool free, quick and easy.
Three-dimensional adjustment
CLIP top BLUMOTION triple advantage: Easy side, height and infinitely variable depth adjustment with spiral screw. What’s more, several mounting plates have cam height adjustment.
Assembly instructions
Assembly videos
CLIP top BLUMOTION assembly and adjustment
The training video demonstrates the insertion of the hinge using INSERTA and illustrates the CLIP mechanism and three-dimensional adjustment options.
CLIP top BLUMOTION trailer
This trailer is used to introduce CLIP top BLUMOTION and is well-suited for presentations, training, etc.
CLIP top BLUMOTION trailer
This video is the intro to the CLIP top BLUMOTION microsite
EXPANDO T for thin fronts
This assembly video shows the assembly of thin fronts with EXPANDO T. The fixing method for CLIP top BLUMOTION 155°, AVENTOS HK top and LEGRABOX is shown.
CLIP top BLUMOTION short film
This product snippet shows the function, different cover caps as well as the onyx black CLIP top BLUMOTION 110° hinge.
CLIP top BLUMOTION deactivation
This assembly video shows the deactivation of the dampening for CLIP top BLUMOTION.
For the lifetime of the furniture: load test of our hinges
No hinge leaves our factory without undergoing a full quality inspection, as Blum hinges have to last for the lifetime of the furniture. Here we can see a junior tester putting a hinge through its paces with a special kind of load test!
It's the love of detail...
...that leads to quality and functionality! Whether searching for the right tune for the dance floor or looking for the right fixing technology for fronts and hinges. Wood? Metal? Glass? Together we make everything possible!
Hinge systems by Blum
Motion is in our DNA
Hinge systems by Blum
Motion is in our DNA
Assembly devices
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
