TIP-ON BLUMOTION for LEGRABOX
Easy manufacturing and assembly
Pull-outs and drawers that are to be equipped with TIP-ON BLUMOTION for LEGRABOX are made as normal. No additional work is required. Blum’s practical templates make manufacturing and assembly easy.
Manufacturing and assembly
Standard cabinets and drawers
TIP-ON BLUMOTION can be implemented with standard cabinets and fronts. No modifications are needed.

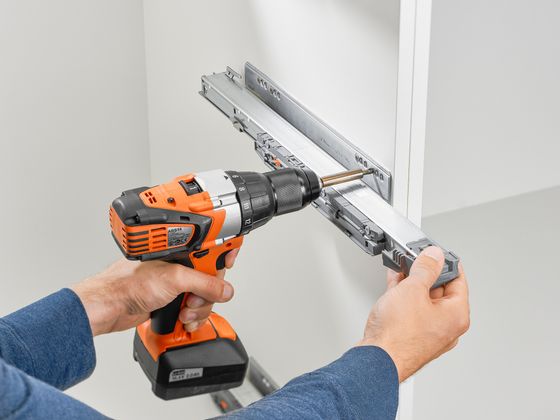

Same drilling positions
For TIP-ON BLUMOTION, you can use the same drilling positions that you would normally use for LEGRABOX.

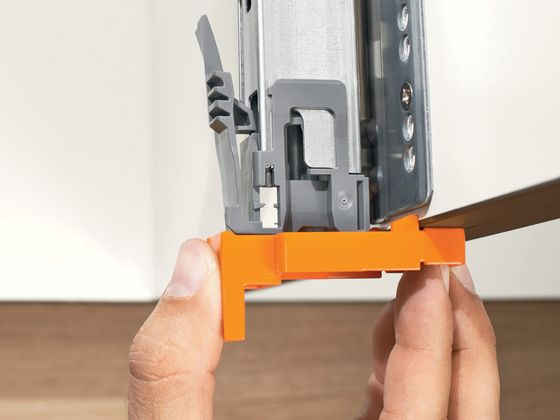

Precise front gap alignment
Use the adjustment template to adjust the front gap to 2.5 mm. It’s precise and easy.

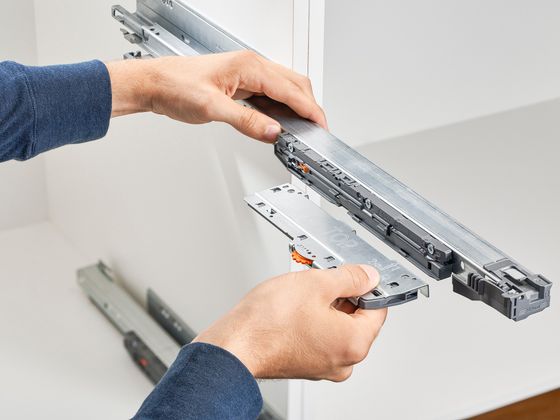

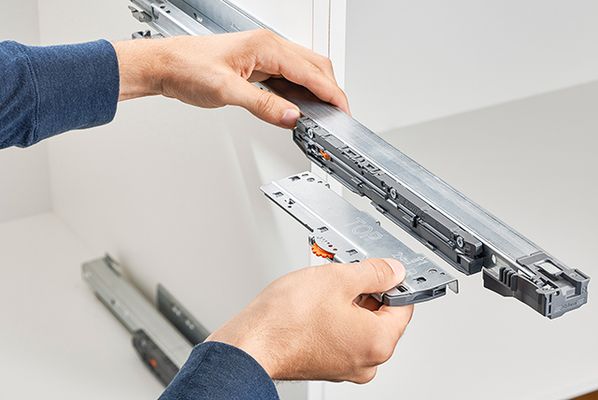

Simple, tool-free assembly
The TIP-ON BLUMOTION unit can be assembled without tools, as can all other components.
Synchronisation
The synchronisation feature enlarges the trigger range and improves the TIP-ON BLUMOTION function. Two synchronisation options are available for different internal cabinet widths. Both can be mounted without tools.
Internal width starting from ≥ 294 mm

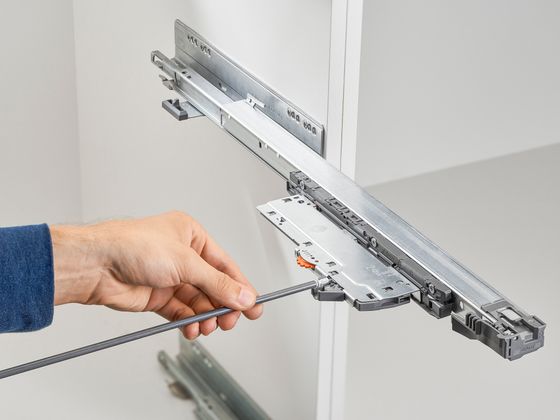

TIP-ON BLUMOTION units for internal cabinet widths of 294 mm or more are synchronised with synchronisation adapters and a synchronisation linkage.
Tool-free assembly

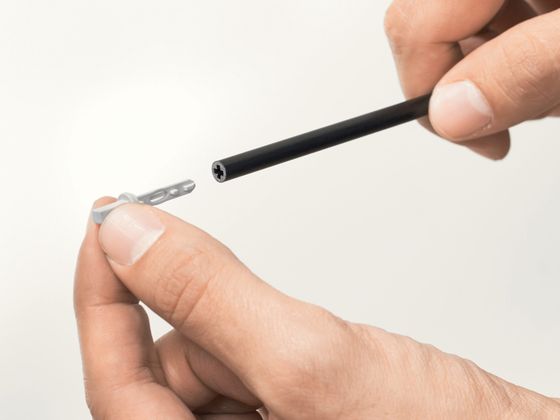

The symmetrical synchronisation linkage is clipped onto the TIP-ON BLUMOTION unit without tools.
Internal cabinet widths of 245 to 293 mm
One-piece synchronisation is used instead of a synchronisation linkage and adapters for smaller internal cabinet widths.
Assembly instructions
Assembly videos
TIP-ON BLUMOTION
This image trailer introduces the TIP-ON BLUMOTION motion technology. It demonstrates the following topics: handle-less, small front gap, quality of motion and fascinating technology.
TIP-ON BLUMOTION for LEGRABOX and MOVENTO with BLUMOTION S runner
This video provides information about assembly of the individual TIP-ON BLUMOTION product components. Depth adjustment is also explained in clear terms using front gap theory.
BLUMOTION S – technology
Demonstrates the suitability of damper types for motion technology and therefore the product intelligence of BLUMOTION S.
BLUMOTION S
Demonstrates the benefits of BLUMOTION S being able to use three different motion technologies with a single runner.
TIP-ON BLUMOTION for LEGRABOX short film
This short film demonstrates the function of TIP-ON BLUMOTION for LEGRABOX.
TIP-ON BLUMOTION for LEGRABOX and MOVENTO
This video shows how to assemble, synchronize and adjust TIP-ON BLUMOTION for LEGRABOX.
4 for more – Interview with Joanna Śmieszek and Bartek Gomularz from Poland (PL)
In this video Joanna Śmieszek and Bartek Gomularz from studio goba in Poland explain how to combine aesthetics and practicality in furniture.
4 for more – Cabinet maker interview with Raphael König from Germany (DE)
In this video, master cabinet maker Raphael König explains how he skilfully combines the various Blum motion technologies depending on the application and installation situation.
4 for more - Cabinet maker interview with Amélie Chambon from Clermont-Ferrand, France
Amélie Chambon, Co-Managing Director of MODOM GmbH in Clermont-Ferrand, France. Amélie manufactures exclusive made-to-measure furniture with great attention to detail.
Assembly devices
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
Go to Assembly Device Selector
